The Critical Safety Role of Velocity Fuses in Loading Docks
In high-capacity distribution centers and logistics hubs across Riyadh, Jeddah, and Dammam, loaded forklifts weighing over 5,000 kg traverse hydraulic dock leveler plates continuously. If a hydraulic supply hose ruptures while a forklift is driving on the platform, gravity would cause an instant, violent free-fall collapse, crushing the operator. Hydraulic velocity fuse safety valves instantaneously shut off fluid escape, locking the platform in place within 75mm of movement.
How Velocity Fuses Function Mechanically
- Flow-Sensitive Spring Poppet: Under normal flow rates (lifting and lowering), fluid bypasses the spring-loaded poppet freely.
- Sudden Over-Speed Closure: If line pressure drops abruptly due to a burst hose, high-velocity oil flow overcomes spring tension, snapping the poppet shut against its seat in under 20 milliseconds.
- Controlled Pressure Release Orifice: A microscopic bypass orifice prevents violent pressure shocks while allowing controlled manual lowering after safety securing.

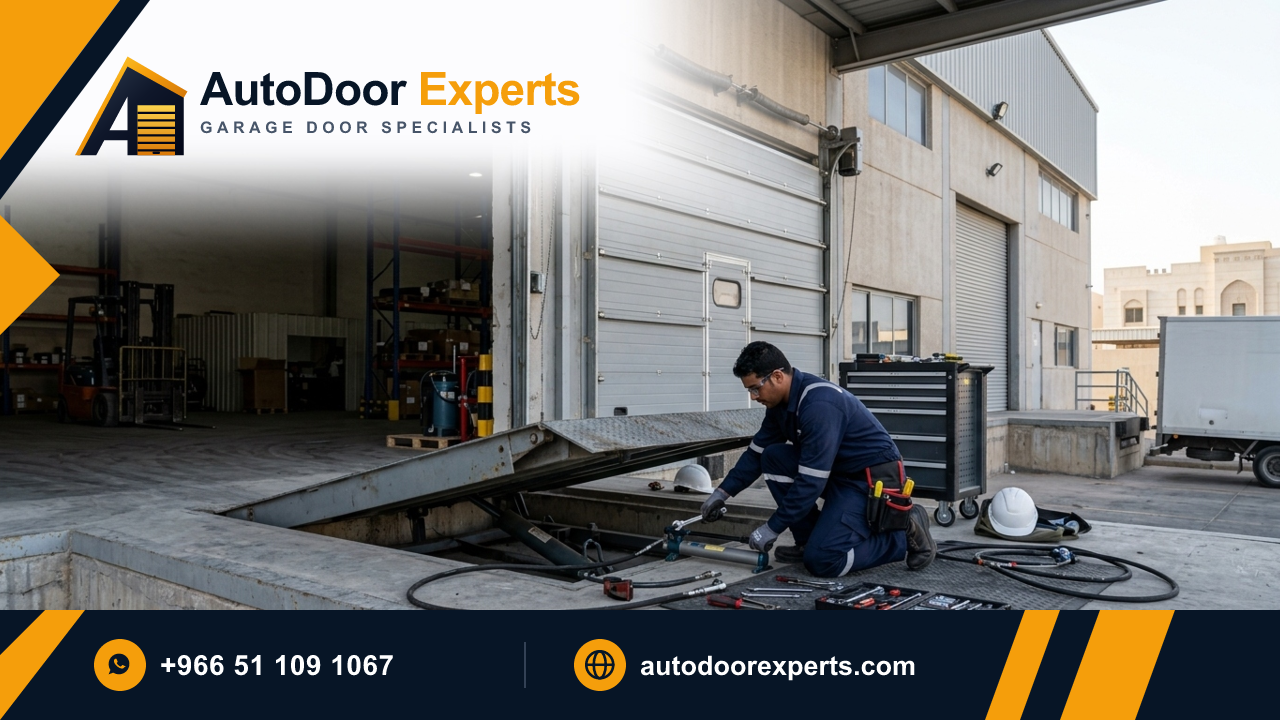

Step-by-Step Proof-Testing Protocol
- Elevate the dock leveler to its maximum height and engage the structural maintenance safety prop.
- Install a calibrated flow-simulation test valve inline between the cylinder port and the velocity fuse.
- Simulate a sudden line rupture by opening the fast-discharge ball valve; verify that the velocity fuse locks the cylinder immediately.
- Inspect hydraulic hoses for rubber cracking, steel wire braid corrosion, or oil weeping; replace all hoses exceeding 5 years of service.
Safety Valve Standards Compliance
| Safety Component | Response Time | Max Free-Fall Distance | Standard Compliance |
|---|---|---|---|
| Hydraulic Velocity Fuse Valve | < 20 milliseconds | < 75mm drop | EN 1398 / ANSI MH30.1 |
| Mechanical Safety Leg System | Passive static catch | 150mm to 300mm drop | Secondary fallback only |
