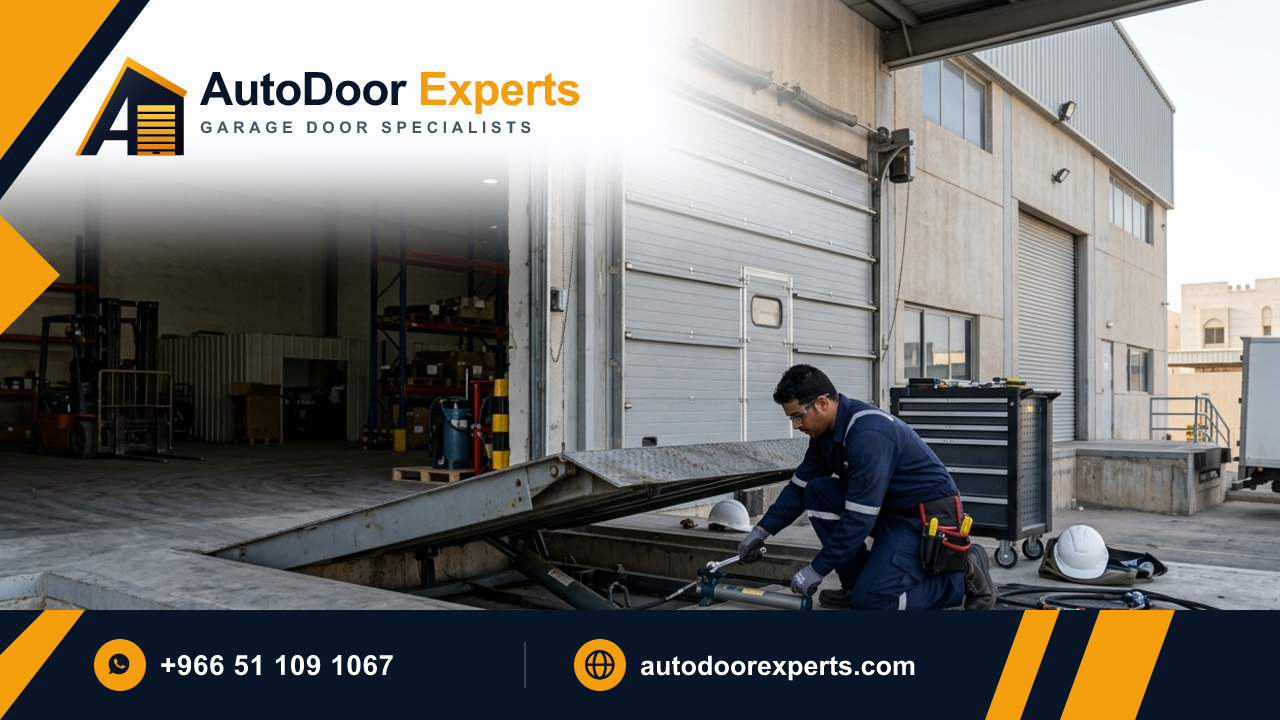

Extreme Loading Stresses on Hydraulic Dock Leveler Lip Hinges
In major logistics hubs across Riyadh, Dammam, and Jeddah, commercial hydraulic dock levelers experience thousands of dynamic loading cycles weekly. When laden 5-ton counterbalance forklifts roll over the extended 16-inch or 20-inch lip plate at speed, immense cantilever shear stress is concentrated across the multi-section piano hinge tubes and central hinge pin.
Common Failure Mechanisms
- Hinge Tube Ovalization: Continuous impact elongates circular steel spool hinge barrels, causing severe lip slop and misalignment.
- Center Pin Fracture: High-tensile pivot pins snap under uneven eccentric shock loads when trucks depart prematurely.
- Gusset Plate Weld Cracks: Under-deck structural triangular gusset fillet welds shear away from the diamond tread deck plate.
Certified Welding & Realignment Protocol
- Safely lock dock deck in upright maintenance position using certified structural maintenance struts.
- Extract deformed hinge pin using hydraulic hollow ram pullers without torching the primary deck plate.
- Line-bore or re-sleeve worn hinge barrels to achieve tight 0.5 mm operating clearance.
- Weld heavy-duty triangular reinforcing gussets using E7018 low-hydrogen structural electrodes.
- Install case-hardened 4140 chrome-moly hinge pins with grease channels and multi-point zerk fittings.
Dock Leveler Hinge Integrity Comparison
| Specification | Worn / Damaged Leveler | AutoDoorExperts Structural Rebuild |
|---|---|---|
| Hinge Pin Material | Mild Steel A36 (Un-hardened) | AISI 4140 Hardened Chrome-Moly (52 HRC) |
| Gusset Plate Thickness | 6 mm standard carbon steel | 12 mm high-tensile yield steel (St52-3) |
| Lubrication Capability | Dry / Seized | Central grooved channels with sealed purge zerks |
| Dynamic Load Capacity | Severely derated (<30 kN) | Certified 150 kN dynamic rolling load rating |
Contact Industrial Dock Specialists in Saudi Arabia
Keep your warehouse logistics operations safe and compliant with SASO loading dock standards. Call AutoDoorExperts at +966 51 109 1067 for emergency structural welding, hydraulic cylinder overhauls, and routine loading dock maintenance.
